instrument wire
1.
XLPE/PVC Instrumentation Cable Construction:
- Conductor:
- 18 AWG and 16 AWC bare, annealed copper per ASTM B3
- Class B stranding per ASTM B8
- Insulation:
- Flame retardant Cross-Linked Polyethylene (XLPE)
- Color-coded per ICEA Method 1:
- Pairs: Black and White
- Shield:
- Individual and Overall shields are aluminum/polyester in contact with stranded tinned copper drain wire
- Jacket:
- Flame retardant and sunlight-resistant Arctic-grade Polyvinylchloride (PVC)
- Options:
- 300V Type PLTC
- Tinned copper conductor
- Class C Stranding
- Overall shielded pairs/triads
- EVTC-Ethylene Propylene Rubber (EPR) insulation
- Other constructions available upon request
XLPE/PVC Instrumentation Cable Applications:
- In free air, raceways or direct burial
- In wet or dry locations
- Permitted for use in Class I Division 2 Industrial hazardous locations per NEC
XLPE/PVC Instrumentation Cable Features:
- Rated at 90°C wet or dry
- Ripcord applied to all cables with jacket thickness of 60 mils or less
- Abrasion- and chemical-resistant
- Sunlight and weather resistant
- Excellent electrical properties
- Meets cold bend test at -25°C
2. products type
| Nominal crosssecion mm2 | number of pairs |
| 0.5, 0.75, 1.0,1.5,2.5 | 1--24 |

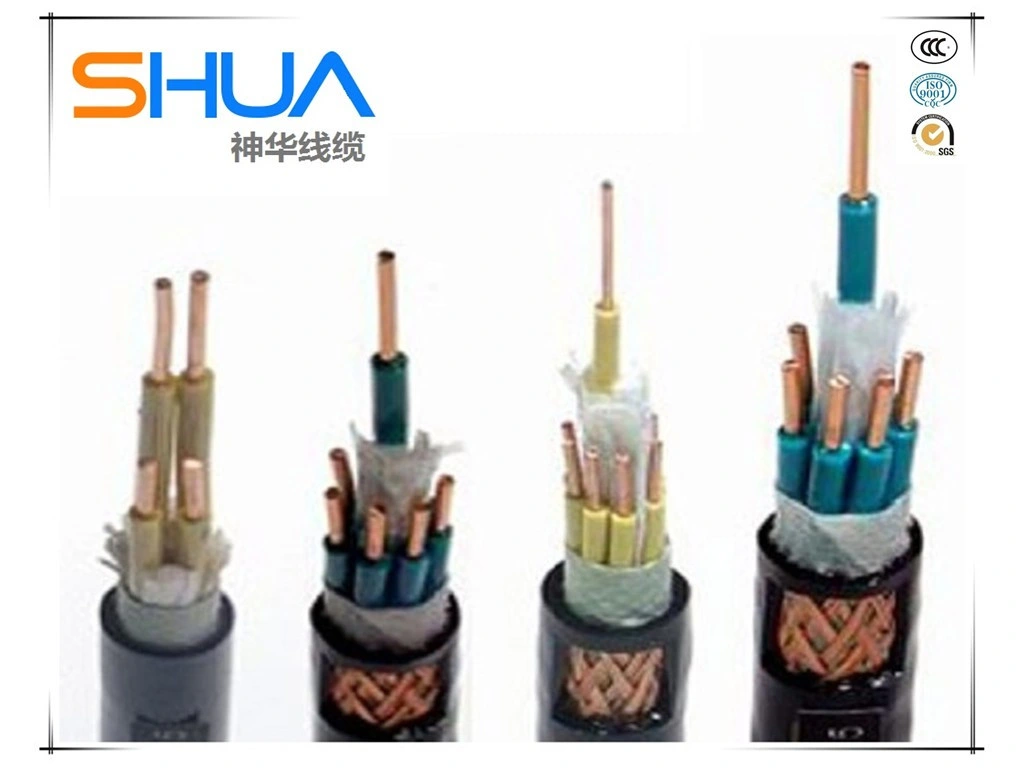

| type for our instument wire |
| 1 | PE insulated stranded copper wire braided shield PVC sheathed cable |
| 2 | PE insulated copper tape shield PVC sheathed cable |
| 3 | PE insulated aluminum plastic braided shield PVC sheathed cable |
| 4 | PE insulated copper tape shielded and steel tape armored shield PVC sheathed cable |
| 5 | PE insulated stranded copper wire braided shielded and steel tape armored shield PVC sheathed cable |
| 6 | PE insulated aluminum/plastic shielded and steel tape or wire armored shield PVC sheathed cable |
