Copper Wire Screened Shield Electrical Equipments Control Cable
1. ApplicationThe control cable has the characteristics of moisture proof, corrosion resistance and damage prevention.
It can be laid in tunnels or cable trenches for indoor electrical installation in dry or humid environments, especially fixed installation and mobile installation in industrial environments, such as: industrial And mining companies, energy and transportation sectors
| Construction | |
| Conductor | Stranded of fine copper wire (class 5) comply with the VDE0295/IEC60228 standard. |
| Insulation material | Special PVC Black cores with white numbers / VDE0293-308 new color (color can be customized according to customer requirements) |
| Cores | Cores twisted in layers. |
| Jacket | special PVC mixture sheath |
| Technical data | |
| Operating voltage | 300/500 V |
| Insulation resistance | > 20 MOhm x km |
| minimum bend radius | Mobile Install: 20x cable diameter Fixed installation: 6x cable diameter |
| Operating temperature range | Mobile installation: - 5 ° C to +70 °C Fixed installation: -40 ° C to +80 ° C |
| Wire grounding ID | G = green / yellow protective conductor X =without green / yellow protective conductor |

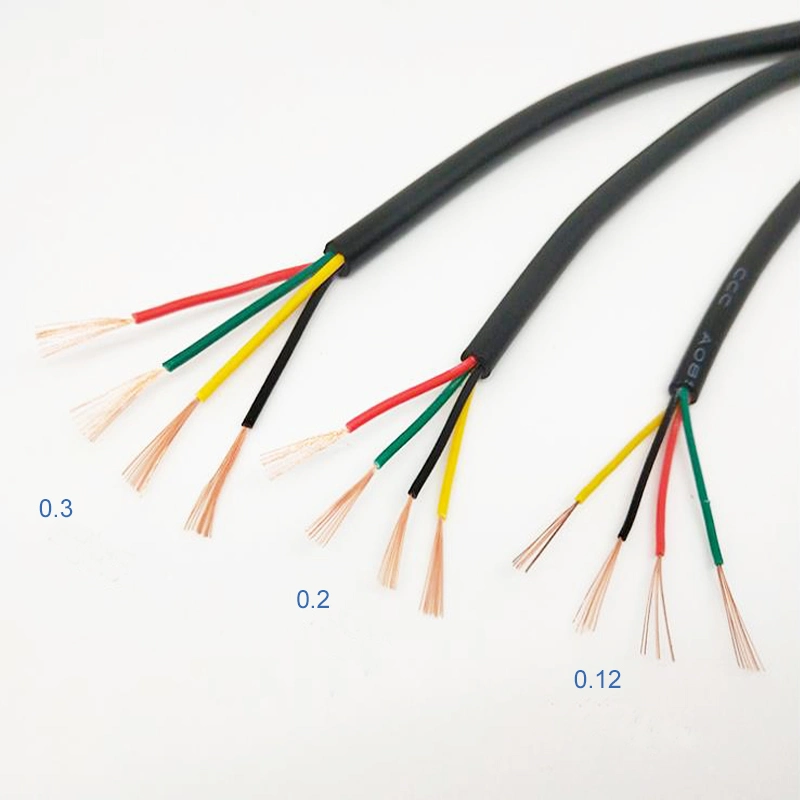

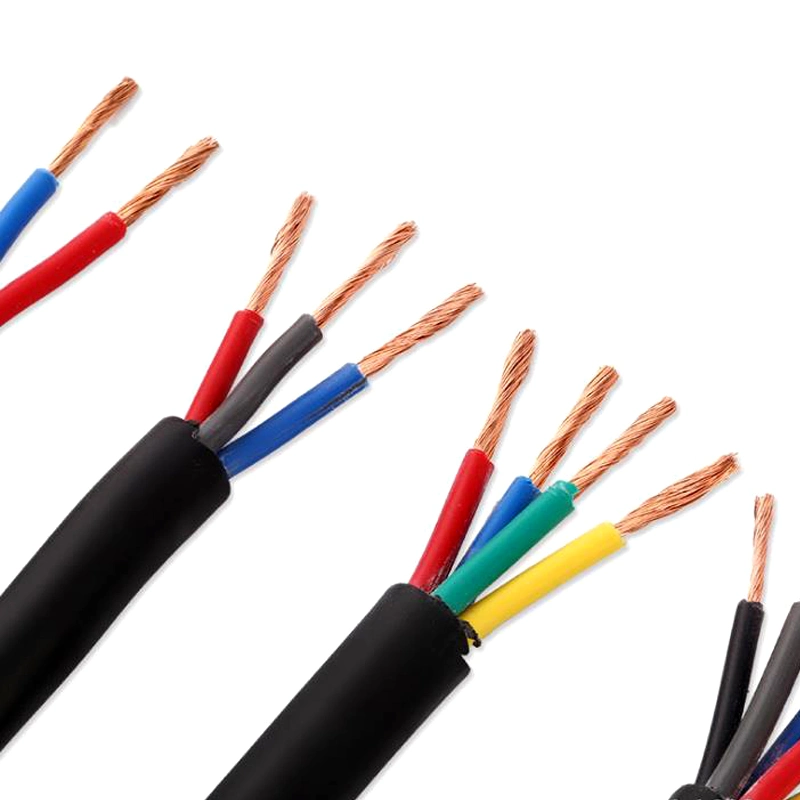

PVC insulated shield control cable
2.Product Description of control cable
1) Working temperature: 70°c (PVC insulation), 90°c (XLPE insulation)
2) Min. ambient temperature: 0 °c
3) Min. bending radius: 8 times cable radius (unarmored), 12 times (armored or copper tape screened)
4) Conductor: class 1, 2, 5 tinned or un-tinned copper
5) Sectional area: 0.75~10mm2
6) Insulation: PVC / XLPE
7) No. of cores: 2~61
8) Screen: copper tape, aluminum-plastic composite tape or braided copper wire
9) Inner covering: extruded PVC or lapped non-woven cloth
10) Armor: steel tape and steel wire available
11) Oversheath: PVC
12) Max. conductor DC resistance at 20°c
The core of the control cable is copper core, nominal cross section 2.5mm2 and below, 2 ~ 61 cores; 4 ~ 6mm2, 2 ~ 14 cores; 10mm2, 2 ~ 10 cores.
The control cables used in computer systems generally use polyvinyl chloride, polyethylene, cross-linked polyethylene, and fluoroplastic insulation products.
| Model | Main scope of application |
| KVV | Laid indoors, fixed occasions such as cable trenches and pipes |
| KVV22 | Laying indoors, cable trench, buried pipelines can bear greater mechanical force fixed installation |
| KVVP | To lay claim chamber, ducts, pipes and the like shield |
| KVVR | Laid indoors, where occasions require movement |
| KVVRP | Placed indoors, where mobile shielding is required |
| ZRKVV | Laid indoors, cable trenches, pipes and other fixed occasions requiring flame resistance |
| ZRKVV22 | Lay indoors, cable trenches, pipelines, etc. can be buried in fixed occasions that can withstand large mechanical external forces and have flame retardancy requirements |
| ZRKVVP | Laid indoors, cable trenches, pipes and other fixed occasions requiring shielding and flame retardant |
| ZRKVVR | Laid indoors where mobility and flame retardant requirements are required |
| ZRKVVRP | Placed indoors, where mobile shielding and flame retardant requirements are required |
